Been working on this in the background - another fuzz
Posted: Wed Jun 10, 2026 12:19 pm
by laurie
There is something about vintage fuzzes ...
Months ago I did a repair locally on a vintage Ace Tone FM-2. This is my tribute build.
The original is a BEAST of a fuzz. I'm hoping mine comes close - I'll fire it up probably on the weekend.
.

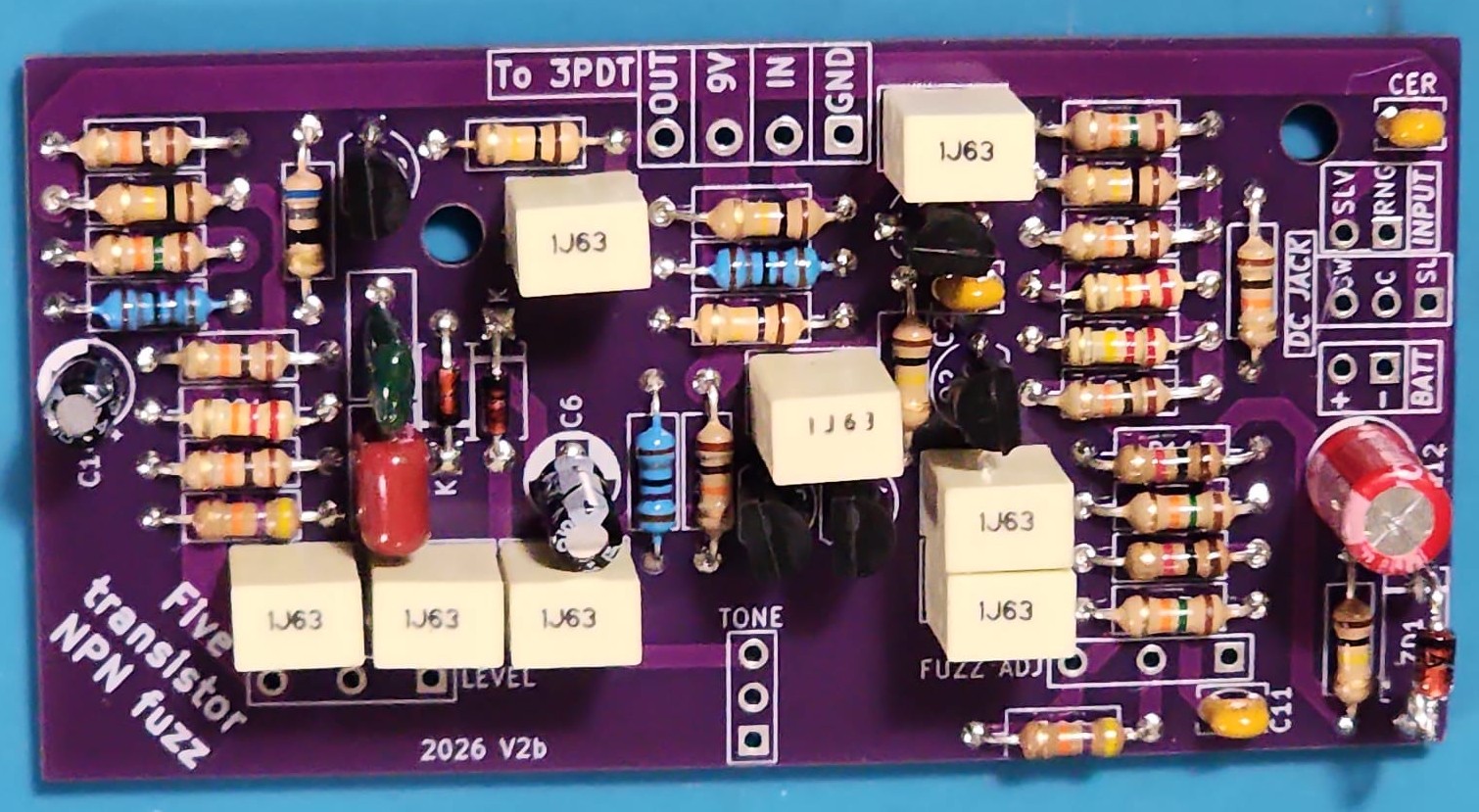

- Five Transistor NPN fuzz1.jpg (314.28 KiB) Viewed 194 times
Re: Been working on this in the background - another fuzz
Posted: Thu Jun 11, 2026 1:40 pm
by laurie

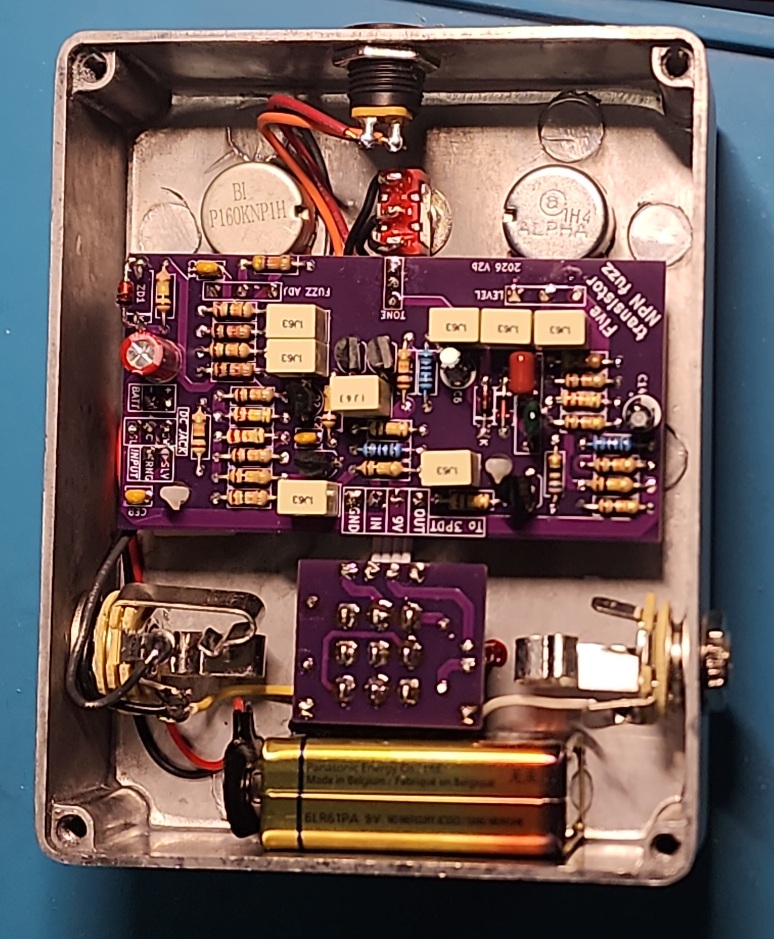

- IMG-20260611-WA0002.jpeg (267.44 KiB) Viewed 165 times
Re: Been working on this in the background - another fuzz
Posted: Thu Jun 11, 2026 3:39 pm
by BearBoy
I'm not familiar with the Ace Tone FM-2 but interested to hear what this sounds like.
Any chance of a demo when you've got it how you want it?
Re: Been working on this in the background - another fuzz
Posted: Thu Jun 11, 2026 5:03 pm
by Boogieman
I am curious, too.
Re: Been working on this in the background - another fuzz
Posted: Thu Jun 11, 2026 5:39 pm
by Pepe
The "Fuzz Master" mode was one of the few in the digital BOSS OD-20 that I really, really liked. It had a nice octave-up fuzz sound. I would love to try the original pedal - or a tribute - one day.
Re: Been working on this in the background - another fuzz
Posted: Fri Jun 12, 2026 1:34 am
by laurie
The build came out nicely. These take quite a bit of tuning - once I have it dialed in I'll do some clips (and send them to pepe?).
I also have some clips from the vintage one I repaired, so we can see how close the build with new components is.
Re: Been working on this in the background - another fuzz
Posted: Fri Jun 12, 2026 2:04 am
by laurie

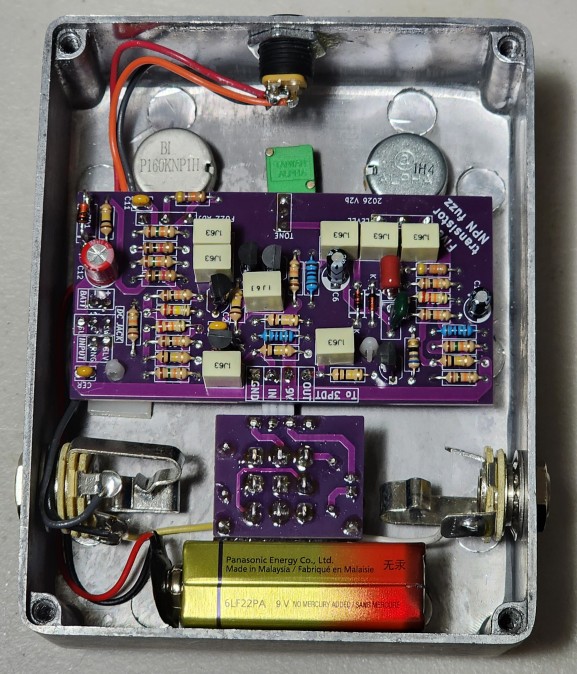

The original pedal has a footswitch for tone - it switches between the two "sides" of a "Bone Ray" tone stack.
My prototype above has a simple toggle switch rather than a footswitch, but I'll be experimenting with using a 100k potentiometer in place of the switch - this will give a "tilt" tone control, and is actually much more common on the "Bone Ray" tone stack than the switch in the original FM-2.
Re: Been working on this in the background - another fuzz
Posted: Fri Jun 12, 2026 6:04 am
by Pepe
laurie wrote: ↑Fri Jun 12, 2026 1:34 am
... I'll do some clips (and send them to pepe?).
Sure! I could upload them on my webspace (mp3 with 320 kbps are a good format).
