New "32" (Laurie) pedals - slowly starting the build

[laurie]

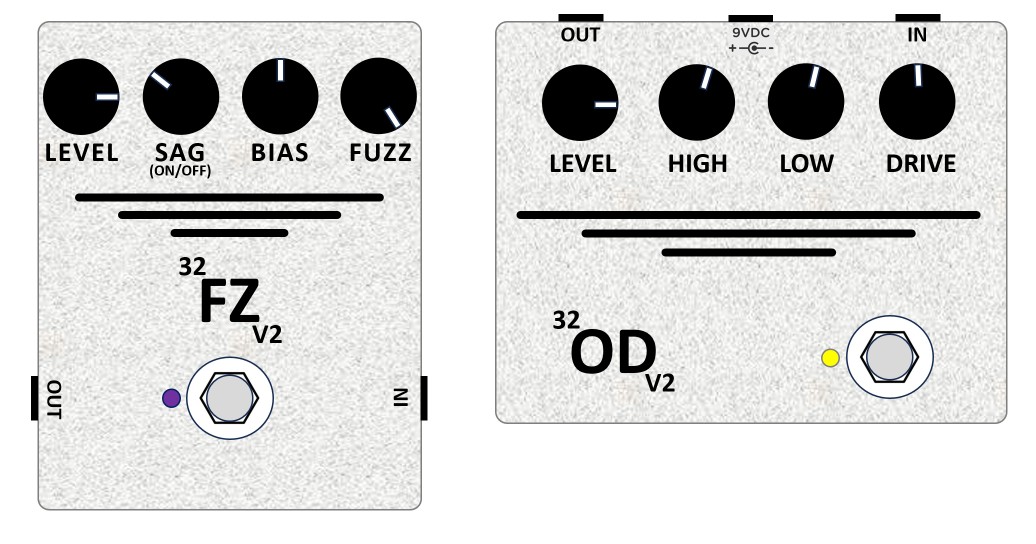

Mockups. I'll document the build process for them both in this thread.

The enclosure will be raw aluminum with laser etched titanium (black) labels.
.

32FZV2 and 32ODV2 mockups2.jpg (126.05 KiB) Viewed 426 times

[BearBoy]

Looking good, Laurie. Nice simple but elegant design

The enclosure will be raw aluminum with laser etched titanium (black) labels.

Is that something you can do yourself with the laser cutter you got recently?

[laurie]

Is that something you can do yourself with the laser cutter you got recently?

Yes indeed. One of the reasons I got it

[laurie]

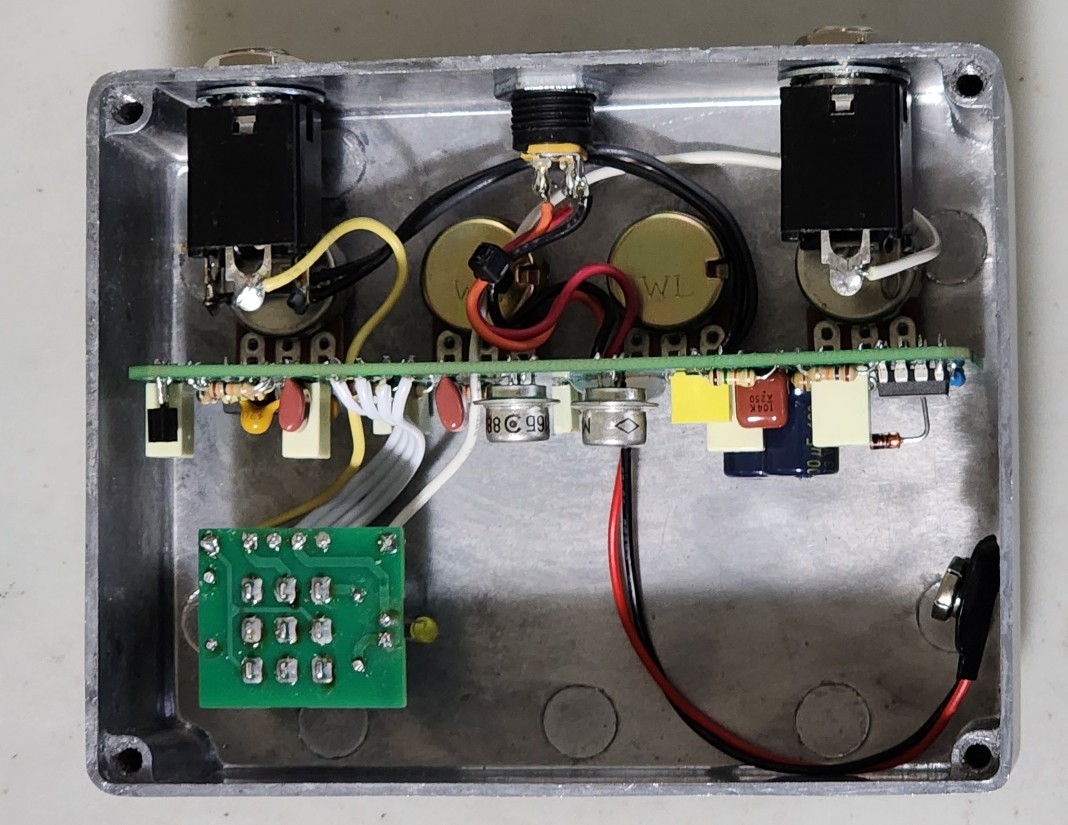

First 32ODV2 board loaded. This one is a test build and I'll use it to adjust the final fit.
.

32ODV2 board1.jpg (138.54 KiB) Viewed 376 times

[Pepe]

Very tidy!

[laurie]

Doing the final tweaks of component values.
.


[laurie]

No labels on this first one. Not yet sure about the knobs - these are just some I had in stock. Actual build will have the knobs about 5mm further away from the footswitch.

Gives everything from clean boost to saturated Germanium overdrive. Very happy with the tone and simplicity.
.


.


[Pepe]

My KORG nu:tekt pedals are signalling their approval!

[laurie]

My KORG nu:tekt pedals are signalling their approval!

Well OK then! I like those knobs.
.
